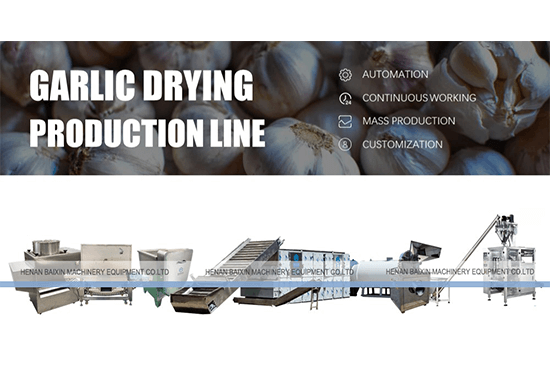

Garlic drying production line
1. Multi heating source you can choose
2.Saving labor cost, only need 2-3 workers to operate
3.Easy installation,intelligent control
4.garlic powder fineness can be selected
Product introduction
Product introduction
We are professional manufacturer of Garlic flakes production line/Garlic powder production line in China.
We have different solutions for different demands:

1: Fully automatic Garlic flakes production line for the capacity of 400kg/h, 800kg/h, 1500kg/h.etc.
2: The finished product of the production line can be garlic powder or dehydrated garlic flakes.
3: All machines are made of SUS304, World famous electrical components, and Siemens brand motors.
4: The heating source for the heat source choice for dryer can be electricity or gas, or diesel.steam, coal, etc.
5: The production line can be semi-automatic or fully automatic according to the needs

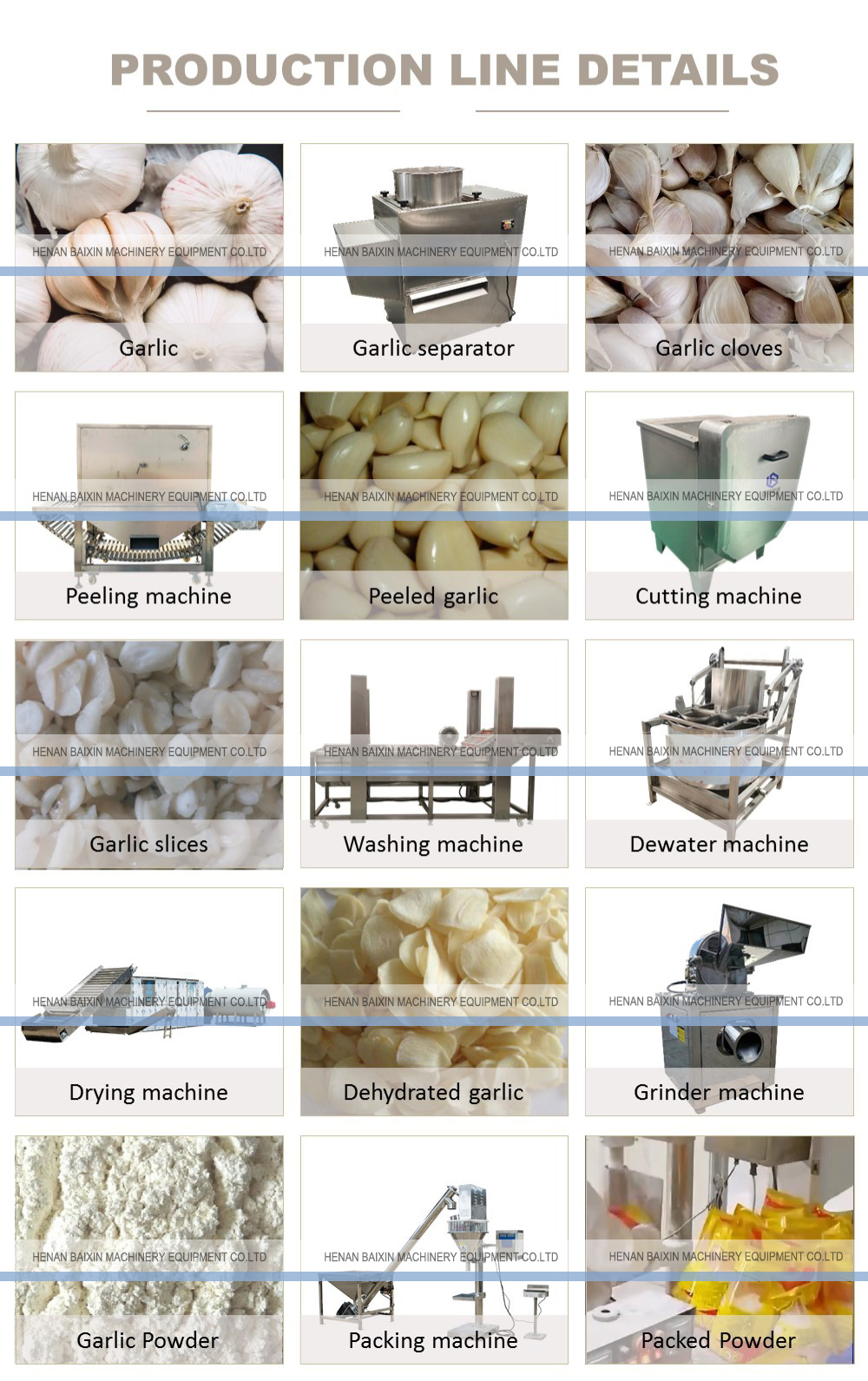

Garlic separator: The Garlic Separating Machine is designed to separate the garlic bulbs into garlic cloves. It is equipped with standard rubber rollers, so the machine won't damage the garlic during the garlic bulb separation process. The gapsbetween the rollers can be adjusted to suit the garlic with different sizes and There is a blower equipped inside themachine which can blow some garlic skin away while operating. The Garlic Clove Separating Machine is easy tooperate and one person is enough to complete the whole separation process. with high productivity and highseparating rate,Garlic Clove Separating machine has been very popular in the farms, restaurants, hotels and othergaric processing industries.

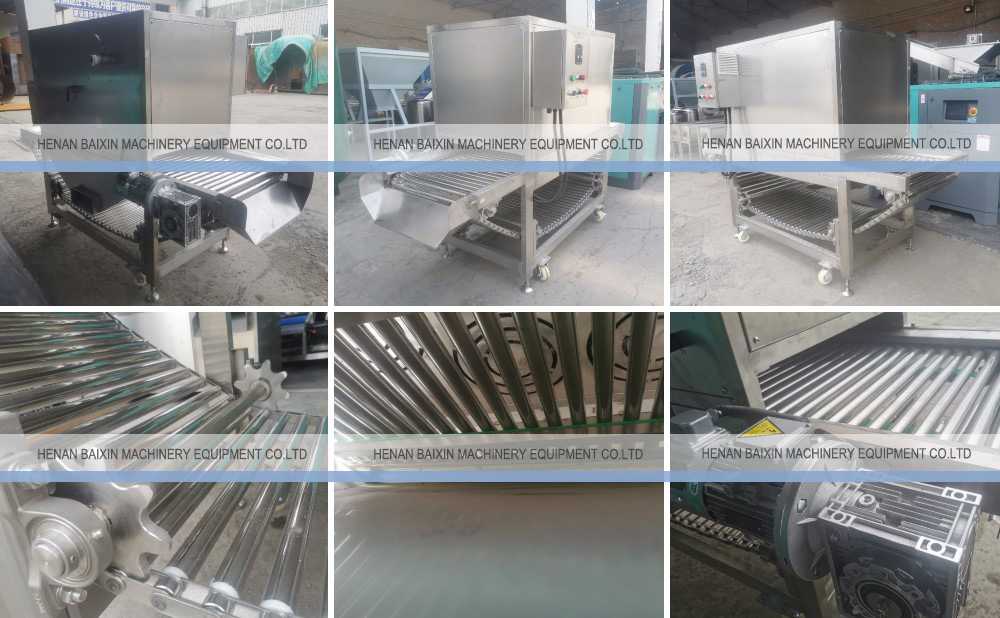

Garlic peeling machine: This machine should be equipped with the air compressor. Because of strong air flow produced by air compressor, the cylone peels off skin of garlic, with low damage rate. It is suitable for those garlic processing industries.

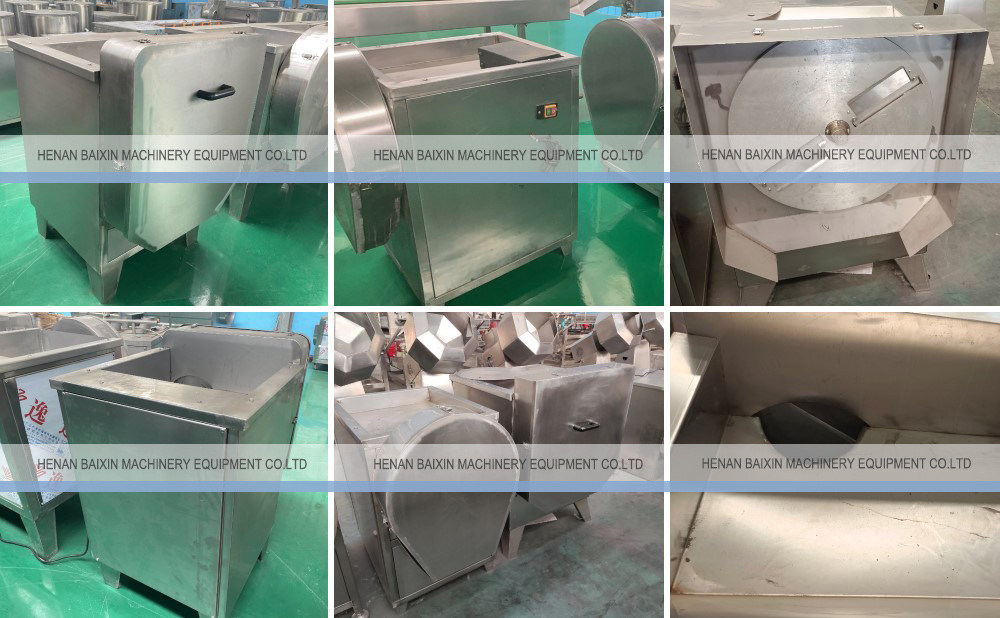

Cutting machine: The slicer is easy to operate, with high output. The thickness of the slice can be adjusted, and the cutting angle can be customized (oblique slicing). The size of the feeding port can be customized, and the surface of the cut pieces is smooth without breaking. It is the most advanced fruit and vegetable slicing equipment in China at present.

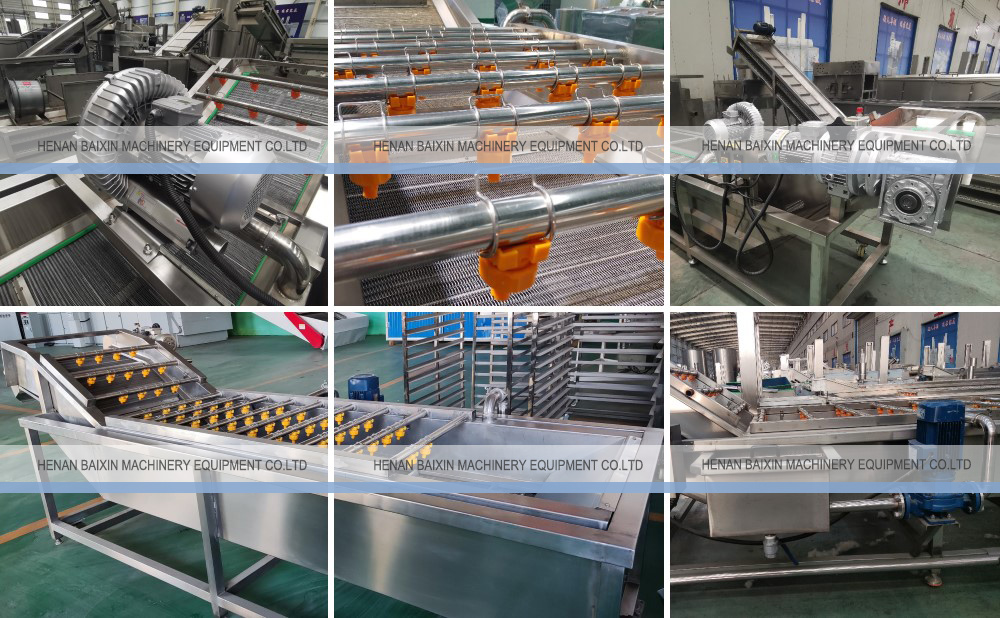

Washing machine: The principle of the bubble cleaning machine is to use the front part of the equipment box to inject an appropriate amount of water into the equipment box, When the raw materials pass through the box, they will tumble under the combined action of the bubble machine and water, and As the mesh belt continues to advance, when it comes out of the water, there is a sprinkler head at the high end for high-pressure flushing.

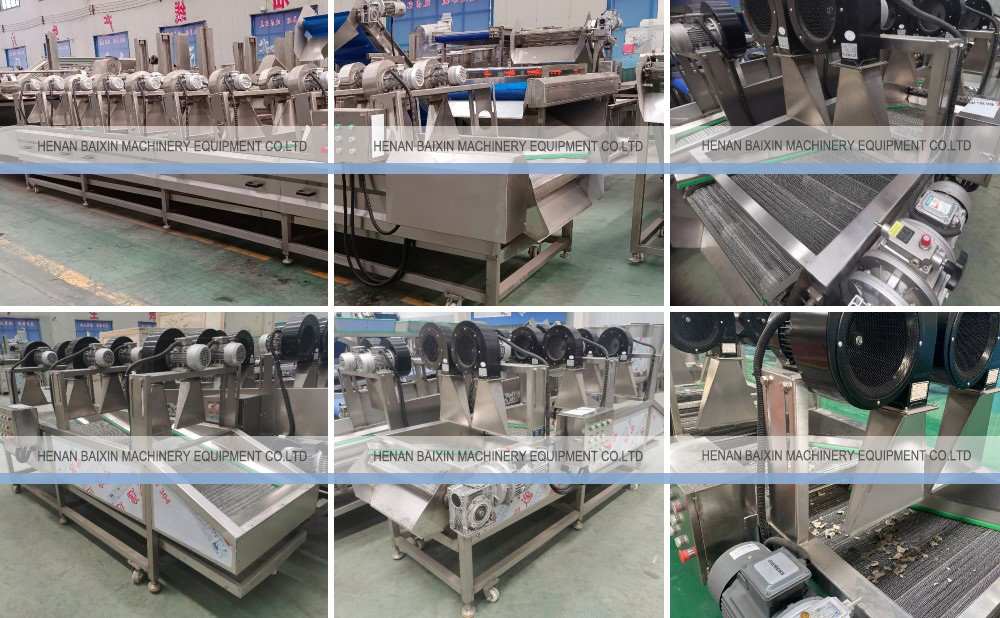

Dewater machine: Use the drum dewater machine to remove moisture from garlic's surface.

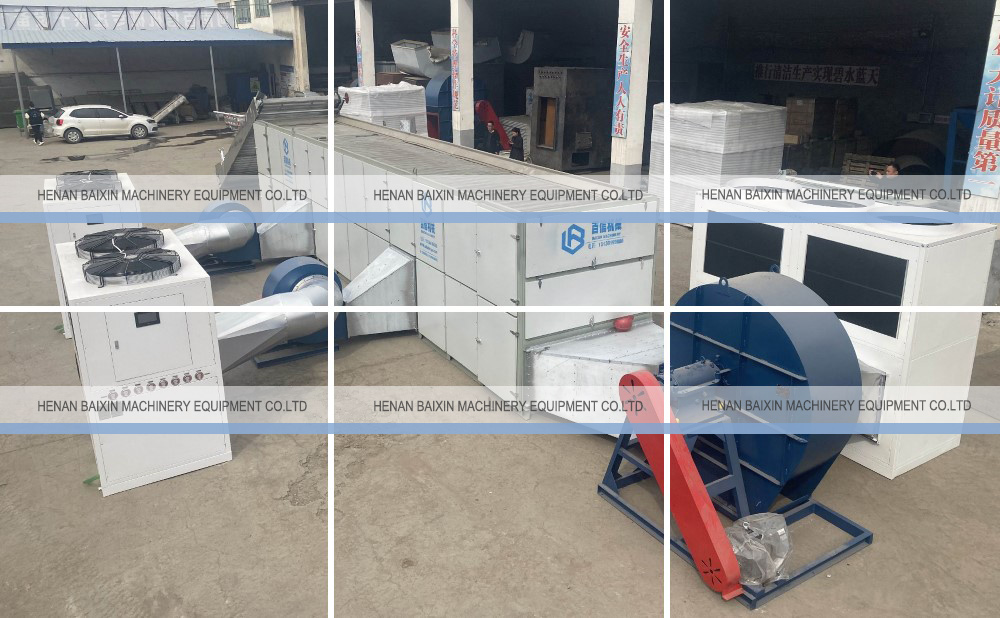

Drying machine: The dryer is the key equipment, which determines the effect and quality of garlic after processing.Using our mesh belt type garlic dryer, with an intelligent control system, can make garlic drying is always maintained in a reasonable drying environment to ensure the effect of the finished product.The use of this garlic dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and rapid drying time.
Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, steam can be used for the dryer etc.
Garlic powder making machine: Grinding dehydrated garlic chips to a fineness of 40-120 mesh, or even finner. The garlic grinder is air-cooled or water-cooled and can work continuously for a long time.
Garlic powder packaging machine: Generally speaking,garlic powder business requires automatic garlic powder packaging equipment.The garlic powder packaging machine has a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.


Equipment Power Dimension
Garlic speparator 0.2kw*2+1.5kw+0.75kw 2400*1000*1400mm
Garlic peeling machine 2.2kw 3000*900*1600mm
Cutting machine 0.75kw 745*590*885mm
Washing machine 3.37kw 3000*1020*1350mm
Dewater machine 0.5kw 1800*1000*1300mm
Drying machine 21.5kw 21000*6000*2500mm
Onion powder making machine 15kw 1040*840*1330mm
Packing machine 6kw 4000*880*2100mm












Q: Is your company a factory?A: Yes, We are a leading manufacturer of food processing in China for 16 years.
Q: What are the advantages of your company?
A: We're a professional food processing machinery supplier, Provide design, manufacture, installation, and after-sales one-stop service.
Q: What are your payment terms?
A: Normally, our payment method is T/T, 30% as the deposit; 70% as the final payment before shipping. also other payment ways.
Q: What is the production circle?
A: 30 working days
Q: Could we visit your factory to check the machine carefully and closely?
A: Highly appreciated factory visiting, will provide machine testing service, face-face discussing,turnkey project design solution
