ginger drying production line
ginger drying production line

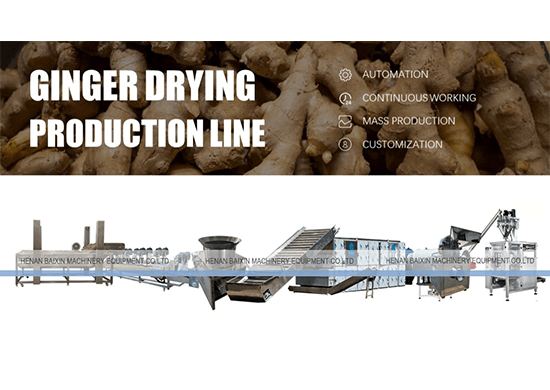

Ginger drying production line
1. Multi heating source you can choose
2.Saving labor cost, only need 2-3 workers to operate
3.Easy installation,intelligent control
4.ginger powder fineness can be selected
Product introduction
Product introduction
We are professional manufacturer of Ginger flakes production line/Ginger powder production line in China.
We have different solutions for different demands:
1: Fully automatic Ginger flakes production line for the capacity of 400kg/h, 800kg/h, 1500kg/h.etc.
2: The finished product of the production line can be ginger flour or dehydrated ginger flakes.
3: All machines are made of SUS304, World famous electrical components, and Siemens brand motors.
4: The heating source for the heat source choice for dryer can be electricity or gas, or diesel.steam, coal, etc.
5: The production line can be semi-automatic or fully automatic according to the needs

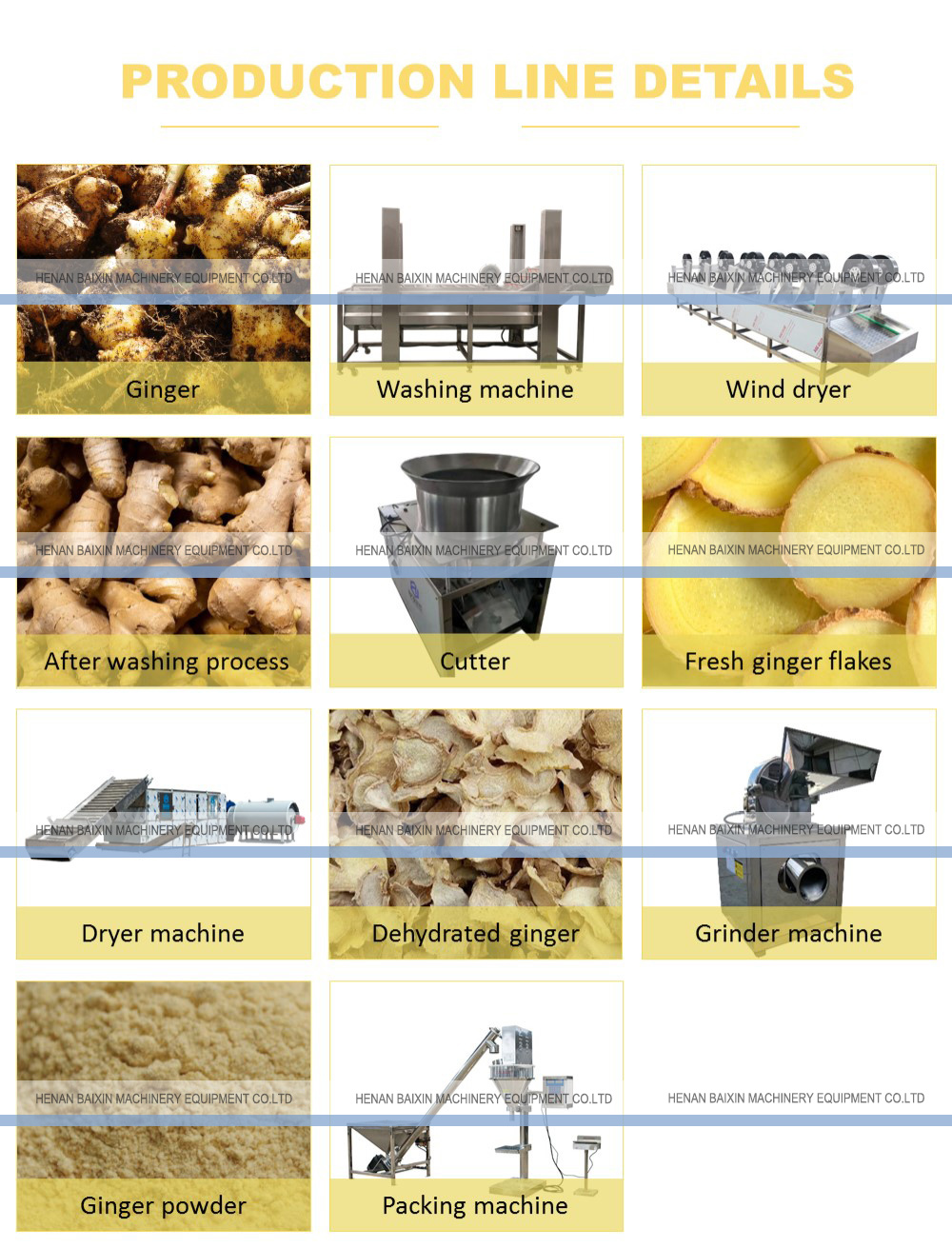

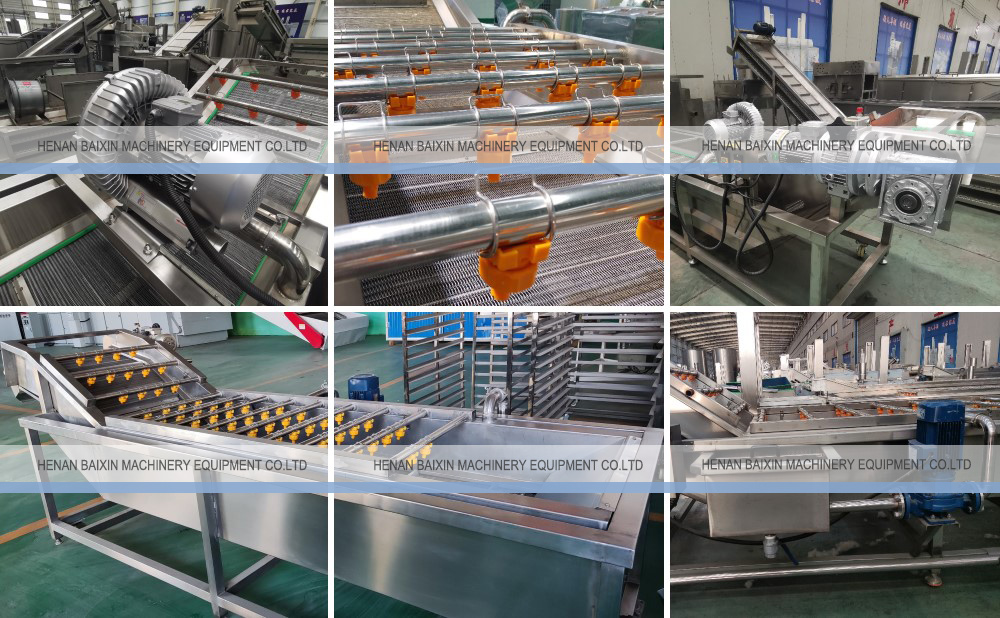

Washing machine: The principle of the bubble cleaning machine is to use the front part of the equipment box to inject an appropriate amount of water into the equipment box.When the raw materials pass through the box, they will tumble under the combined action of the bubble machine and water, and  As the mesh belt continues to advance, when it comes out of the water, there is a sprinkler head at the high end for high-pressure flushing.

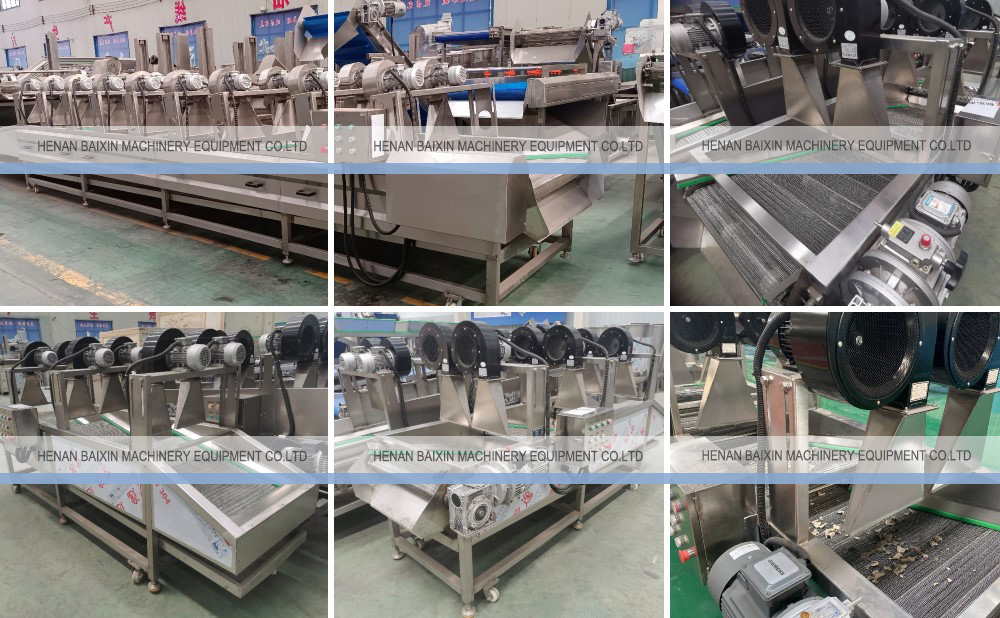

Wind dryer: The wind dryer is mainly used for drying the surface moisture of various cleaned fruits and vegetables, and processed ingredients. The high-power, low-noise fan is adopted, and the air outlet is in the shape of an air knife, and the drying air temperature can be adjusted to effectively protect the color and quality of the material itself. This machine is widely used, has high efficiency and is easy to operate.

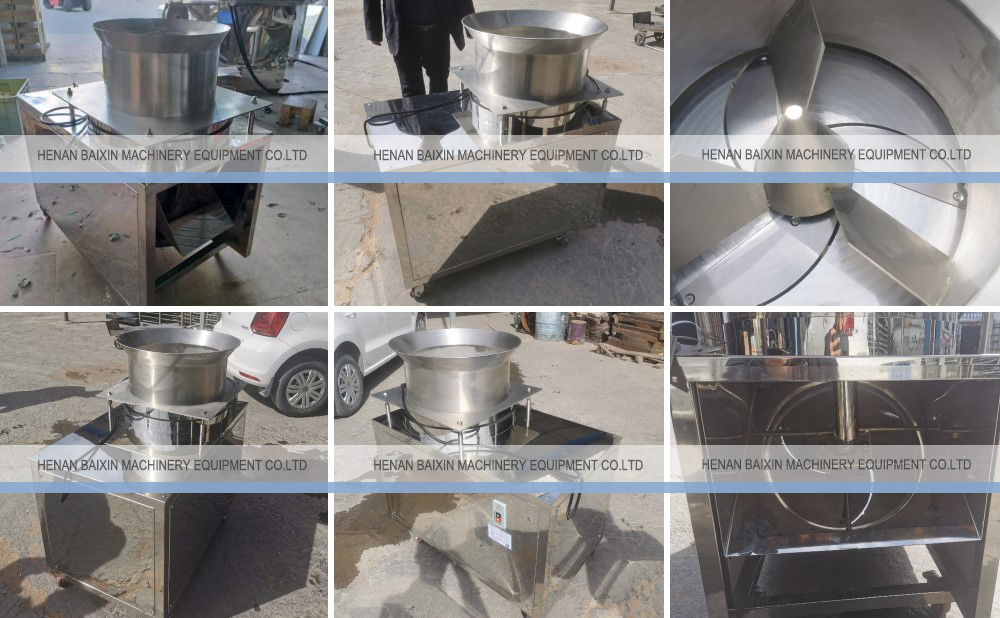

Cutting machine: The slicer is easy to operate, with high output. The thickness of the slice can be adjusted, and the cutting angle can be customized (oblique slicing). The size of the feeding port can be customized, and the surface of the cut pieces is smooth without breaking. It is the most advanced fruit and vegetable slicing equipment in China at present.

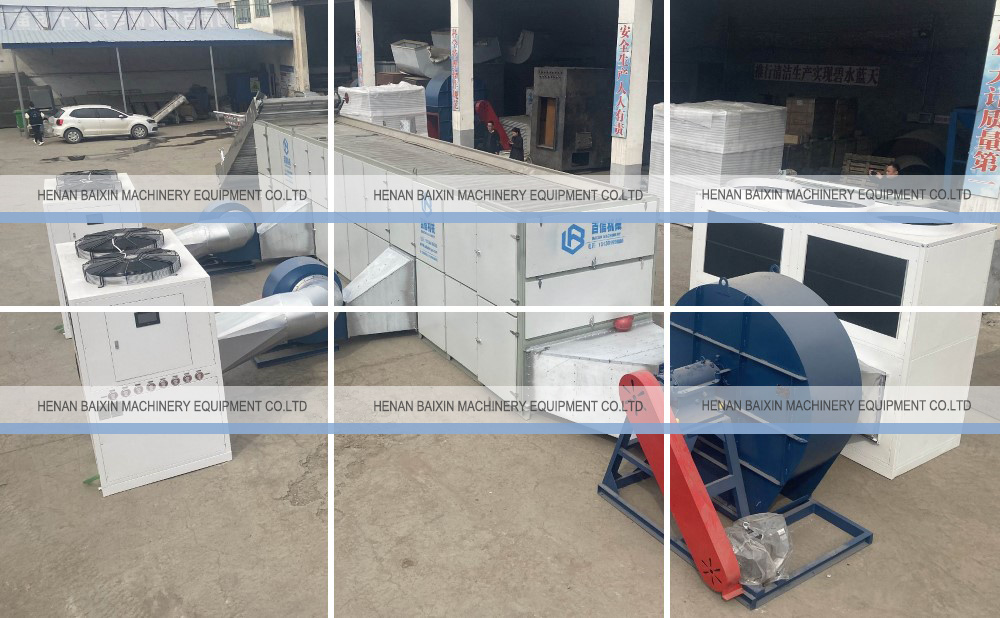

Drying machine: The dryer is the key equipment, which determines the effect and quality of ginger after processing.Using our mesh belt type ginger dryer,with an intelligent control system,can make ginger drying is always maintained in a reasonable drying environment to ensure the effect of the finished product,use of this ginger dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and rapid drying time.
Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, steam can be used for the dryer etc.
Ginger powder making machine: Grind dehydrated ginger chips to a fineness of 40-120 mesh, or enven finner. The ginger grinder is air-cooled or water-cooled and can work continuously for a long time.
Ginger powder packaging machine:   Generally speaking,ginger powder business requires automatic ginger powder packaging equipment.The ginger powder packaging machine has a PLC control system, which is intelligent and controllable, and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.


Equipment Power Dimension
Washing machine 3.37kw 3000*1020*1350mm
Wind dryer 0.5kw 1800*1000*1300mm
Ginger Cutting machine 0.75kw 745*590*885mm
Drying machine 21.5kw 21000*6000*2500mm
Ginger powder making machine 15kw 1040*840*1330mm
Packing machine 6kw 4000*880*2100mm










Q: Is your company a factory?A: Yes, We are a leading manufacturer of food processing in China for 16 years.
Q: What are the advantages of your company?
A: We're a professional food processing machinery supplier, Provide design, manufacture, installation, and after-sales one-stop service.
Q: What are your payment terms?
A: Normally, our payment method is T/T, 30% as the deposit; 70% as the final payment before shipping. also other payment ways.
Q: What is the production circle?
A: 30 working days
Q: Could we visit your factory to check the machine carefully and closely?
A: Highly appreciated factory visiting, will provide machine testing service, face-face discussing,turnkey project design solution
